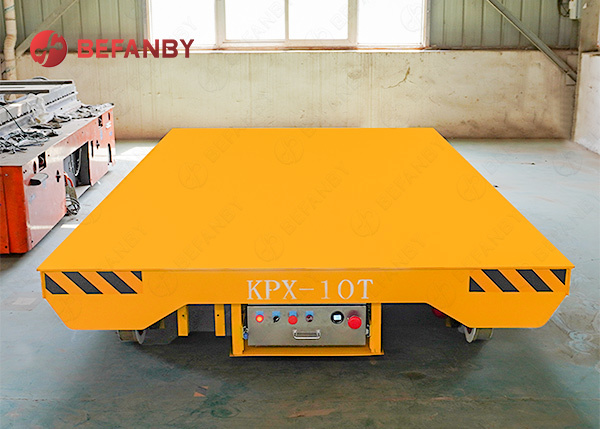

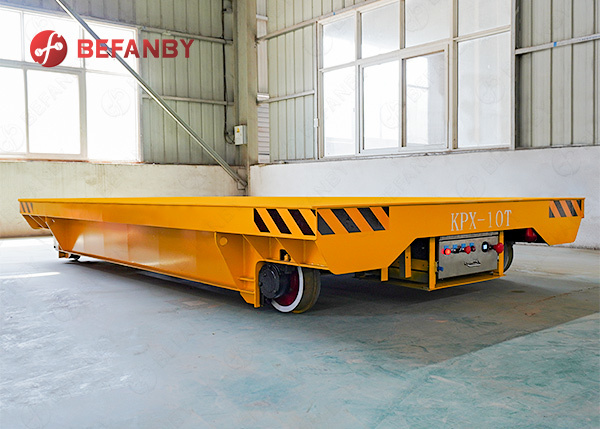

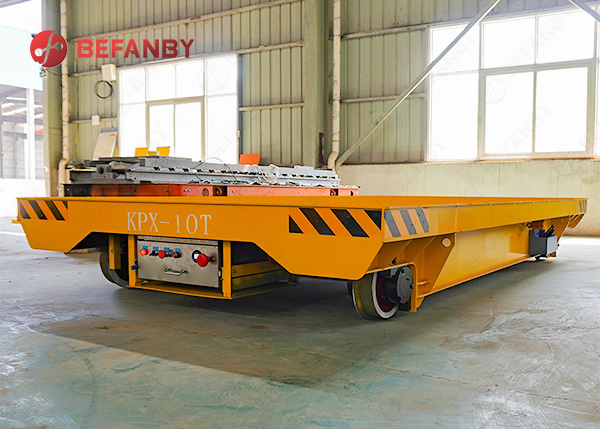

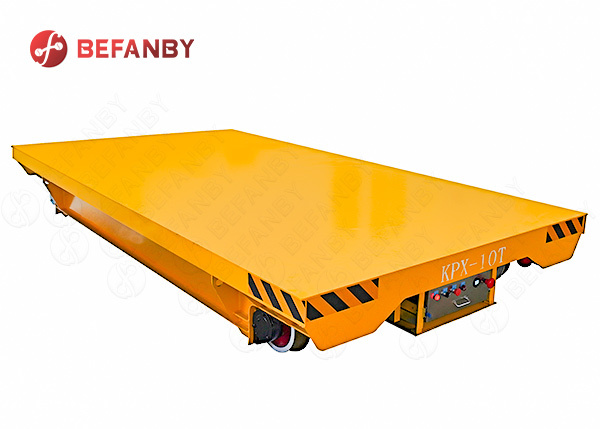

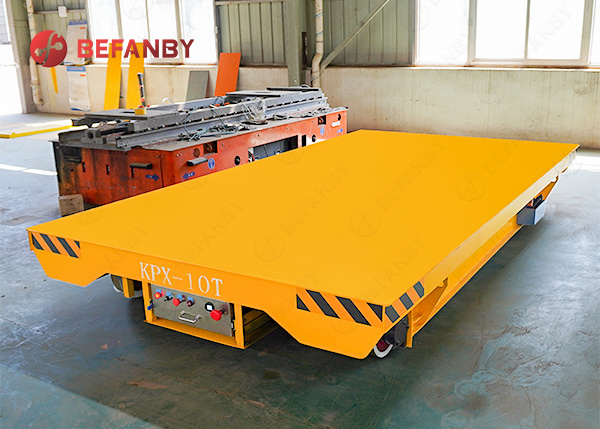

Professional Support Customized Rail Transfer Cart With 10T Capacity
| Tempat asal | Henan, Tiongkok |
|---|---|
| Nama merek | BEFANBY |
| Sertifikasi | CE,SGS,ISO9001 |
| Nomor model | KPX |
| Kuantitas min Order | 1 Set/Set |
| Harga | Dapat dinegosiasikan |
| Kemasan rincian | Pabrik mobil datar listrik akan dikemas oleh terpal, bagian -bagiannya akan dikirimkan dalam kasing |
| Waktu pengiriman | 40-50 hari seperti pengiriman biasa, 30-40 hari untuk pengiriman mendesak |
| Syarat-syarat pembayaran | L/C,T/T,Western Union |
| Menyediakan kemampuan | 1000 set/set per tahun |
Detail produk
| Bahan | Q235 | Kecepatan Lari | 0-20m/menit |
|---|---|---|---|
| Kapasitas Beban | 1-1000T | Catu daya | Daya Baterai |
| Jenis operasi | Tergantung tangan + remote control | Bahan roda | Terisolasi |
Deskripsi Produk
Professional Support Customized Rail Transfer Cart With 10T Capacity
1. Product Introduce
To meet the diverse transportation needs of different enterprises, our battery-powered rail transfer carts offer non-standard customization; the entire process—from conceptual design and drawing approval to manufacturing—is tailored to the client's specific operational conditions. The carts can be designed with various deck configurations, such as flatbed, ladle, lifting, or coil-handling types, and offer customizable colors and aesthetics, making them suitable for transporting large steel components, molds, coils, machinery, and other heavy workpieces.
2. Successful Solution
3. Befanby Material Handling Equipment Introduce
Welcome to inquiry us if you'd like to learn more
4. Technique Parameter
| Model | KPX-2t | KPX-5t | KPX--10t | KPX--16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
5.Our Advantages
Battery-powered operation eliminates the range limitations imposed by cable length, allowing for flexible routing; the system offers extended operating time based on battery capacity and supports rapid charging. Combined with a mature drive system and safety protection mechanisms, the vehicle ensures stable operation and a long service life, making it an ideal material handling solution for modern smart factories, automated production lines, and heavy manufacturing enterprises.
