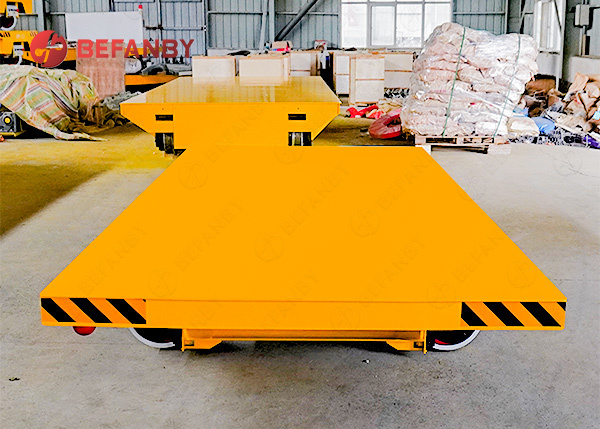

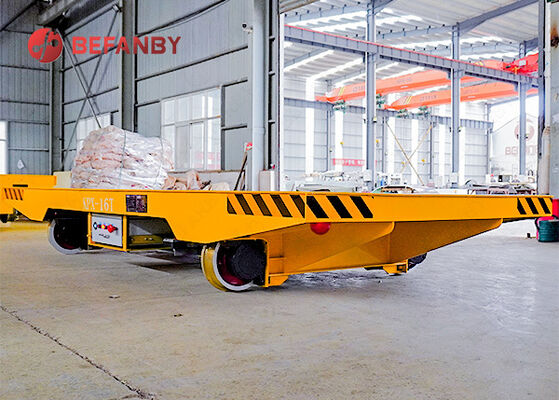

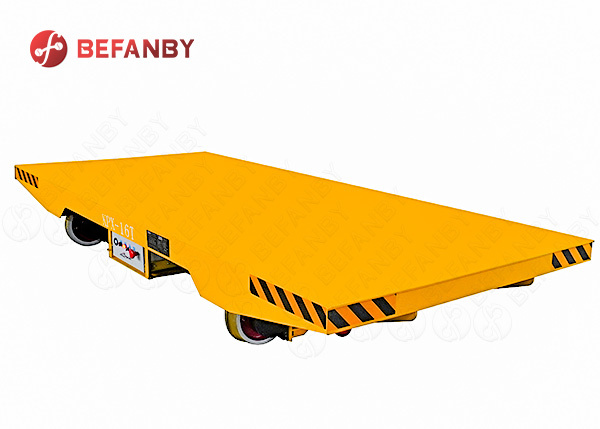

Custom Designed Cart Body 16t Rail Transfer Trolley
| Tempat asal | Henan, Tiongkok |
|---|---|
| Nama merek | BEFANBY |
| Sertifikasi | CE,SGS,ISO9001 |
| Nomor model | KPX |
| Kuantitas min Order | 1 Set/Set |
| Harga | Dapat dinegosiasikan |
| Kemasan rincian | Troli bermotor akan dikemas oleh terpal, bagian -bagiannya akan dikirim dalam kasing kayu berkualita |
| Waktu pengiriman | 40-50 hari seperti pengiriman biasa, 30-40 hari untuk pengiriman mendesak |
| Syarat-syarat pembayaran | L/C,T/T,Western Union |
| Menyediakan kemampuan | 800 set/set, per tahun |
Detail produk
| Bahan | Q235 | Warna | Disesuaikan |
|---|---|---|---|
| Aplikasi | Lapangan Industri, Penanganan Pipa Baja | Kecepatan Lari | 0-20m/menit |
| jarak berjalan | Tak terbatas | Jaminan | 24 bulan |
| Pelabuhan | Qingdao/Tianjin/Shanghai | Kapasitas Beban | Muatan 1-1000 Ton |
| Jenis operasi | Liontin tangan + remote control | Catu Daya | Bertenaga Baterai |
| Keuntungan | Pengalaman lebih dari 23 tahun dalam Pengangkutan Bagian Kapal Antar Gedung Galangan Kapal | Daya opsional | catu daya kabel, saluran trolly, rel tegangan rendah, diesel, dll. |
Deskripsi Produk
Custom Designed Cart Body 16t Rail Transfer Trolley
The rail transfer cart featured here boasts a load capacity of up to 16 tons and utilizes a high-strength steel frame design, ensuring robust load-bearing performance. Through professional structural analysis and optimization, the cart effectively distributes load pressure, maintaining stable operation even during the long-term transport of large, heavy materials.
Furthermore, the cart's dimensions, platform configuration, and load capacity can be customized to suit specific on-site operating conditions, meeting the unique requirements of diverse transport scenarios.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

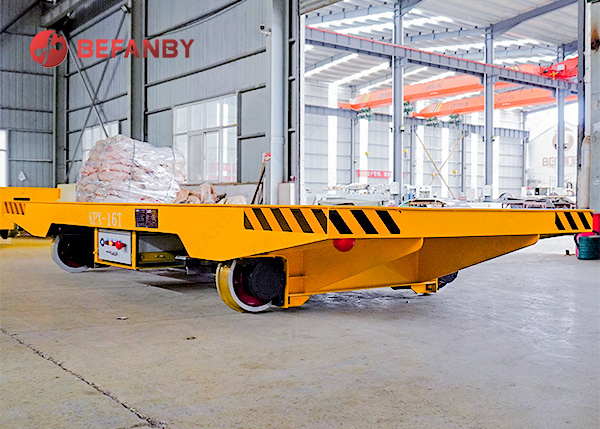

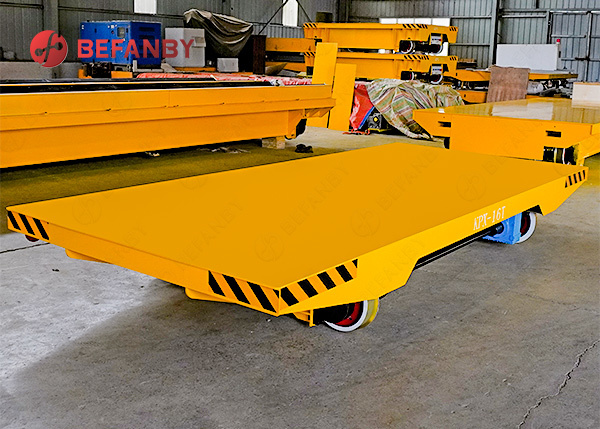

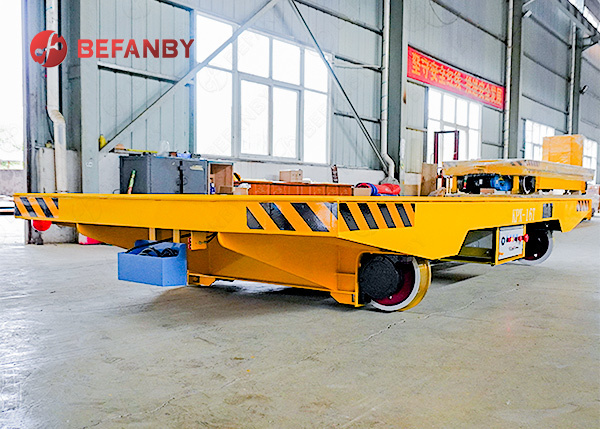

Detailed Images
It operates smoothly and adapts to a wide range of working conditions. The transport vehicle utilizes a fixed-rail guidance system that effectively prevents deviation and slippage, making it particularly suitable for fixed-route transport in settings such as production workshops, warehouses, and assembly lines. The design combines cast-steel wheels with a DC motor drive system, ensuring smooth startup, steady-speed operation, and precise positioning—even when fully loaded.
For enterprises frequently transporting heavy workpieces, rail-based transport not only boosts efficiency but also minimizes the risks associated with manual handling, thereby enhancing overall operational safety.
Technique Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Our Company
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
