20 Tonne Rail Transfer Cart With Battery
| Tempat asal | Henan, Tiongkok |
|---|---|
| Nama merek | BEFANBY |
| Sertifikasi | CE,SGS,ISO9001 |
| Nomor model | KPX |
| Kuantitas min Order | 1 Set/Set |
| Harga | Dapat dinegosiasikan |
| Kemasan rincian | Platform angkat yang bergerak akan dikemas oleh terpal, bagian-bagian akan dikirim dalam kasus kayu |
| Waktu pengiriman | 20-30 hari seperti pengiriman biasa |
| Syarat-syarat pembayaran | L/C,T/T,Western Union |
| Menyediakan kemampuan | 1500 set/set, per tahun |
Detail produk
| Warna | Disesuaikan | Jaminan | 24 Bulan |
|---|---|---|---|
| Kapasitas Beban | Disesuaikan | Catu daya | Baterai Dioperasikan |
| Pelabuhan | Qingdao/Tianjin/Shanghai | Aplikasi | Pekerjaan udara, pabrik, bengkel, situs konstruksi |
| Bahan | Baja |
Deskripsi Produk

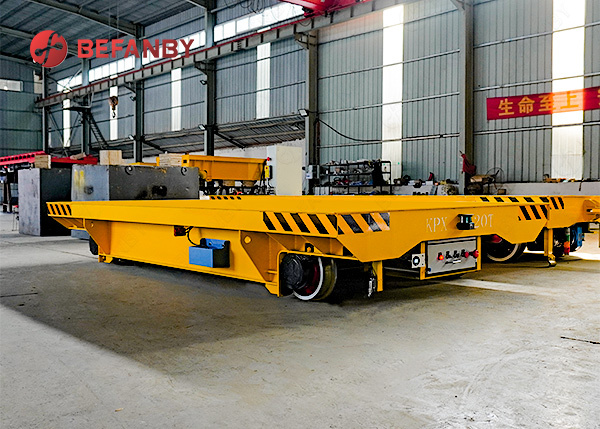

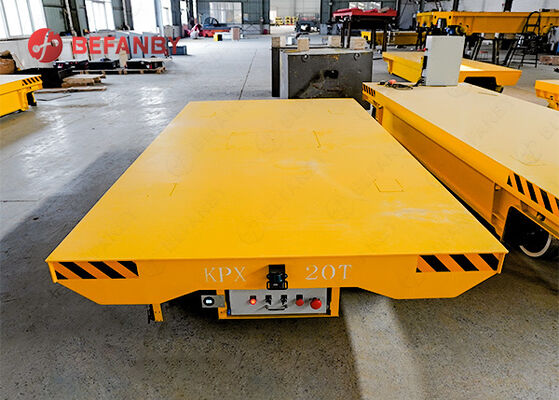

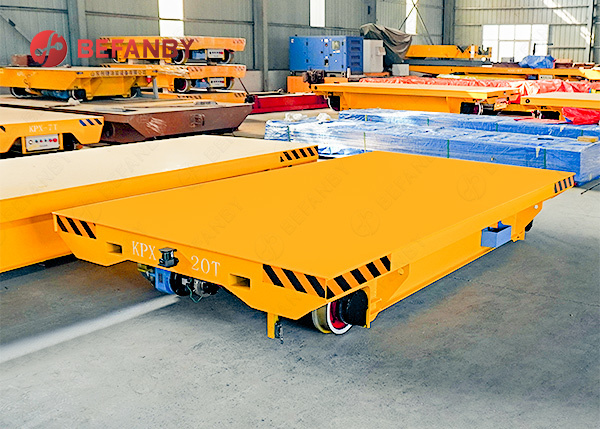

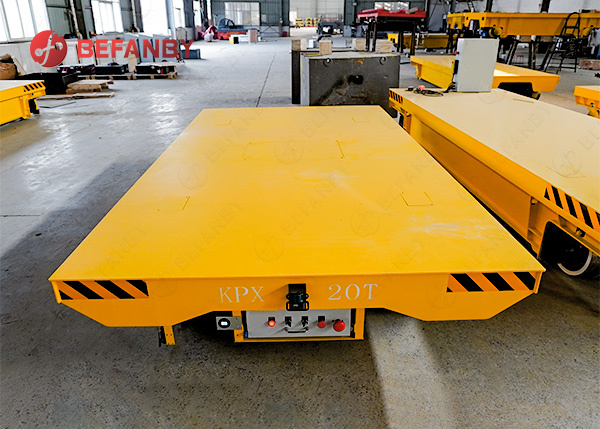

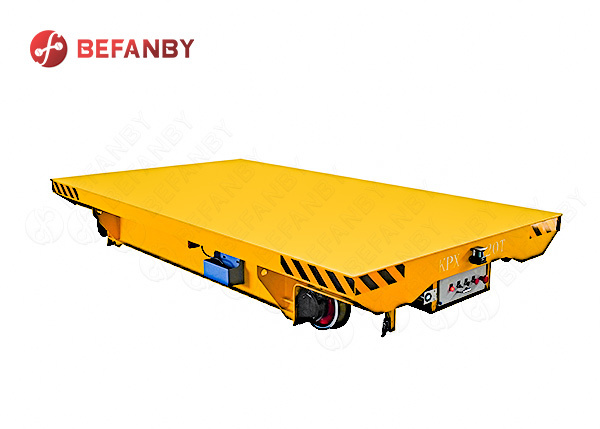

20 Tonne Rail Transfer Cart With Battery
Product Description
This rail transfer cart is powered by a battery system, eliminating the need for external cables and enabling continuous operation over extended periods. Offering flexible and convenient maneuverability, it is particularly well-suited for the transfer of heavy materials between workshops, warehouses, and production lines. The vehicle boasts a load capacity of 20 tons, effectively meeting the transportation requirements for large-scale equipment, steel workpieces, molds, and other heavy-duty materials.
Product Details

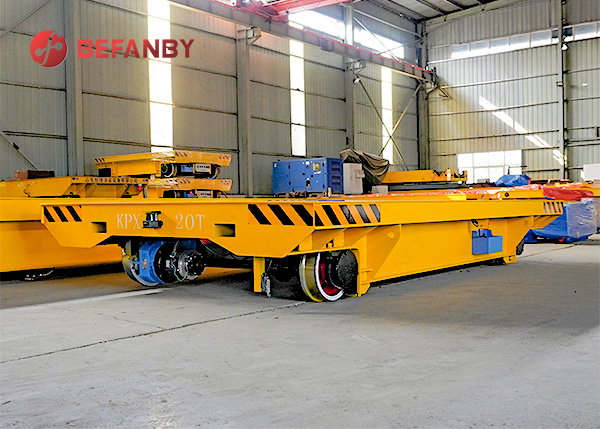

The transport cart's drive system features high-strength cast steel wheels, which boast exceptional load-bearing capacity and wear resistance, enabling them to withstand the demands of high-frequency operations over the long term. These cast steel wheels ensure smooth operation and maintain a high degree of contact with the rails, thereby effectively minimizing running resistance and guaranteeing a safe and reliable transport process. They are particularly well-suited for heavy-duty, long-distance, and continuous-transport applications.
Product Parameter
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-25T | KPT-30T | KPT-40T | KPT-50T | KPT-63T | KPT-80T | KPT-100T | KPT-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 |
QU100 |
|
Company Profile
Product Feature
The rail transfer cart utilizes a high-capacity battery as its power source, offering exceptional endurance and enabling approximately eight hours of continuous operation. Integrated with an electronic control system, it supports multiple operating modes—including handheld pendants and wireless remote controls—ensuring smooth startups, responsive braking, and simple operation. This significantly boosts material handling efficiency within the workshop while substantially reducing manual labor intensity.
The vehicle frame features a box-beam structural design, delivering high overall strength and robust impact resistance. Key specifications—such as platform dimensions, body height, travel speed, control methods, safety guardrails, hydraulic lifting capabilities, and automated controls—can all be customized to suit the client's specific operational conditions, thereby meeting the diverse requirements of various production environments.
Shipping
Related Products
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
Product Tap: Material Handling Cart , Rail Transfer Cart
