Heavy Load Mold Factory Automatic Dumping Device No Rail Transfer Cart
| Tempat asal | Xinxiang |
|---|---|
| Nama merek | BEFANBY |
| Sertifikasi | CE,SGS,ISO9001 |
| Nomor model | BWP-40T |
| Kuantitas min Order | 1 buah |
| Harga | Dapat dinegosiasikan |
| Kemasan rincian | Bagian listrik akan menambah perisai. Seperti yang dipersyaratkan oleh pelanggan, kami dapat menamba |
| Waktu pengiriman | 30-40 hari seperti pengiriman biasa, 20-30 hari untuk pengiriman segera |
| Syarat-syarat pembayaran | 30% setoran dengan T/t di muka, 70% saldo dengan T/T sebelum pengiriman |
| Menyediakan kemampuan | 1500 set satu tahun |
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Aplikasi | pabrik, bengkel, gudang | Kapasitas Beban | 1-1500T |
|---|---|---|---|
| Ukuran mobil | Disesuaikan | Negara yang diekspor | Singapura, Australia, Afrika Selatan, Meksiko |
| Bagian listrik | Siemens, Schneider, Nord | Perangkat pengaman | Lampu peringatan, sirene, bumper |
| Catu Daya | Kabel |
Deskripsi Produk

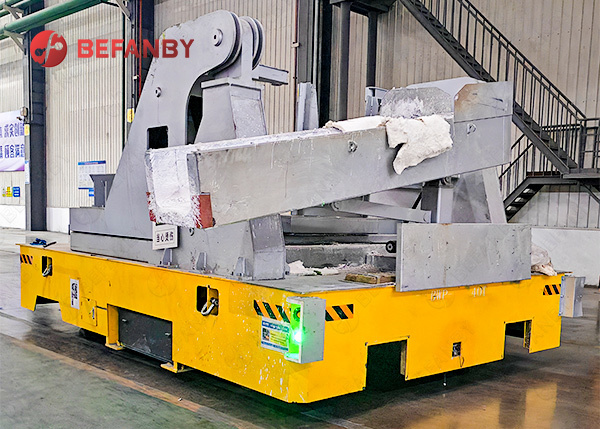

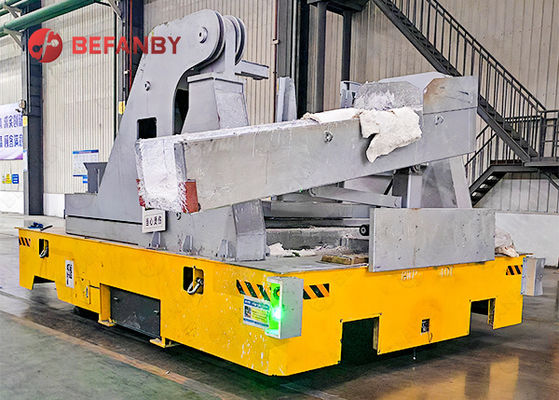

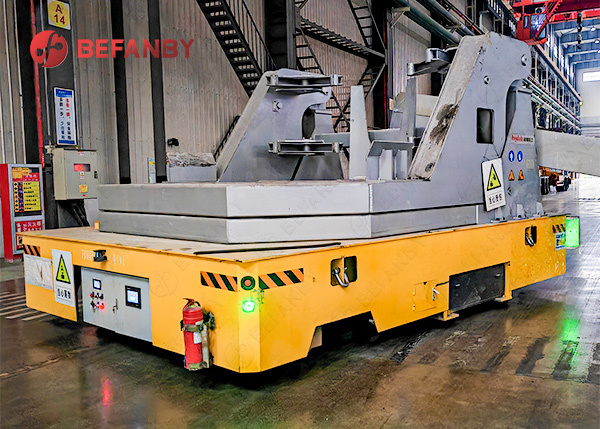

Heavy Load Mold Factory Automatic Dumping Device No Rail Transfer Cart
Product Description of Rail handling vehicle
The trackless transfer cart features an automatic tilting function, making it particularly suitable for transporting high-temperature and heavy materials such as molten steel and ladles. Its design ensures safety and efficiency during material handling.
Main Features:
Automatic Tilting Function: Automatically tilts the material upon reaching the designated location, reducing manual operation and improving efficiency and safety.
High Temperature Resistance: Designed to meet the transportation needs of high-temperature materials such as molten steel, the cart's body material has high-temperature resistance, and refractory bricks can be added to the body. Suitable for use in high-temperature environments.
High Load Capacity: Can carry heavy materials such as ladles and steel pipes, greatly improving handling efficiency and ensuring the safe transportation of large materials.
Flexible Movement: The trackless design allows it to move freely in different locations, forward and backward, and turn in any direction, adapting to diverse production line layouts and facilitating internal workshop transportation.
Simple Operation: The automated control system, combined with a remote control interface, enables remote operation, reducing human error.
Main Parts
Technical Parameter
| Model | KPJ-2T | KPJ-5T | KPJ-10T | KPJ-16T | KPJ-20T | KPJ-25T | KPJ-30T | KPJ-40T | KPJ-50T | KPJ-63T | KPJ-80T | KPJ-100T | KPX-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
|
